LTC3525ESC6-3.3#TRPBF Price|Datasheet

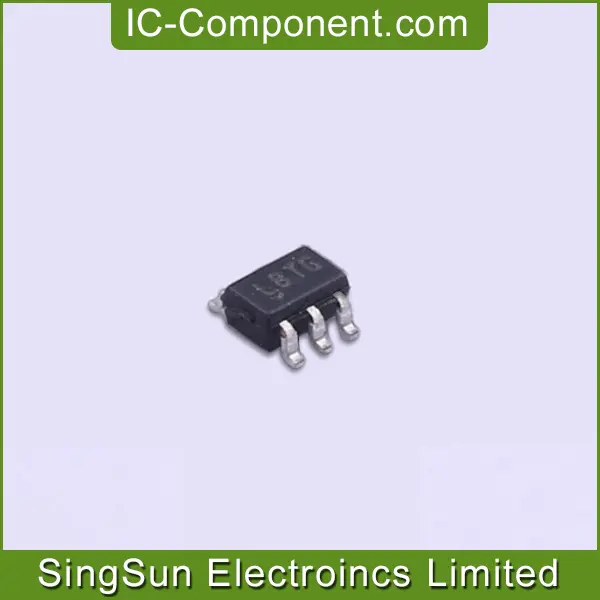

LTC3525ESC6-3.3#TRPBF

IC REG BST 3.3V 0.4A SYNC SC70-6

Quantity: Price

1: $0

10: $0

100: $0

250: $0

500: $0

In Stock

Address: Quantity Available

Shenzhen: 10000 pcs

Shanghai: 0 pcs

Hong Kong: 0 pcs

United States: 0 pcs

The above prices and inventory are for reference only, please consult customer service for the latest quotation and inventory!

Specifications of LTC3525ESC6-3.3#TRPBF

Part Number	LTC3525ESC6-3.3#TRPBF
Date Code	2140
Quantity Available	10000 pcs
Manufacturer	Linear Technology/Analog Devices
Lead Time	Ship within 24 hours
QTY	500
Datasheet	LTC3525-3.3.pdf
Minimum Quantity	More than 50pcs
Distributor	SingSun
RoHS Status	Lead free / RoHS Compliant
Ship From	Hong Kong
Shipment Way	EMS/SF/DHL/TNT/UPS/FedEx
Country of Assembly	TAIWAN
Country of Diffusion	UNITED STATES
Lot Number	QA92843.27
MSL	1
Packaging	Tape & Reel (TR)

Base Product Number	LTC3525-3.3
Function	Step-Up
Output Configuration	Positive
Topology	Boost
Output Type	Fixed
Number of Outputs	1
Voltage - Input (Min)	1V
Voltage - Input (Max)	4.5V
Voltage - Output (Min/Fixed)	3.3V
Voltage - Output (Max)	-
Current - Output	140mA
Frequency - Switching	-
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	6-VSSOP, SC-88, SOT-363
Supplier Device Package	SC-70-6

LTC3525ESC6-3.3#TRPBF Features

● Up to 95% Efficiency
● Output Disconnect and Inrush Current Limit
● Fixed Output Voltages of 3V, 3.3V or 5V
● Delivers 65mA at 3V from a 1V Input
● Delivers 60mA at 3.3V from a 1V Input, or 140mA at 3.3V from a 1.8V Input
● Delivers 175mA at 5V from a 3V Input
● Burst Mode^® Operation: I_Q = 7μA
● Only Three External Components
● V_IN > V_OUT Operation
● <1μA Shutdown Current
● Antiringing Control
● Short-Circuit and Overtemperature Protection
● Very Low Profile of 1mm
● Tiny 6-Lead SC70 Package

LTC3525ESC6-3.3#TRPBF Description

The LTC3525-3.3 is high efficiency synchronous step-up DC/DC converters with output disconnect that can start up with an input as low as 0.85V. They offer a compact, high efficiency alternative to charge pumps in single cell or dual cell alkaline or Li-Ion applications. Only three small external components are required. The LTC3525-3.3 is offered in fixed output voltages of 3.3V.

The device includes a 0.5Ω N-channel MOSFET switch and a 0.8Ω P-channel synchronous rectifier. Peak switch current ranges from 150mA to 400mA, depending on load, providing enhanced efficiency. Quiescent current is an ultralow 7μA, maximizing battery life in portable applications.

Other features include <1μA shutdown current, antiringing control and thermal shutdown. The LTC3525-3.3 is available in a tiny 6-Lead SC70 package.
