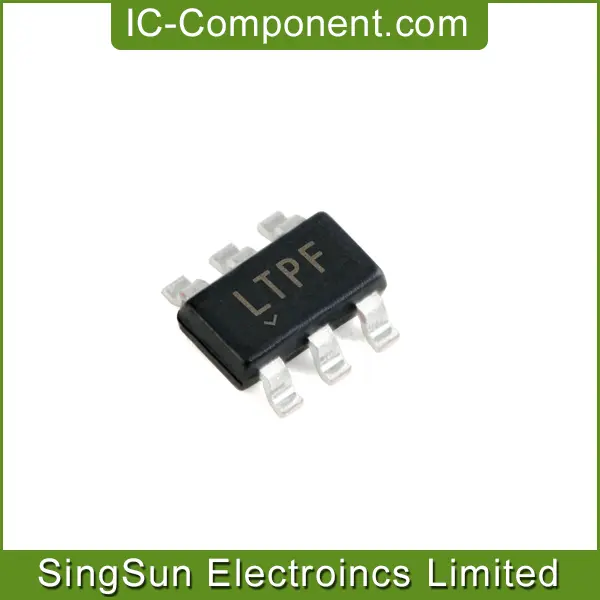

IC CTRLR SW HI-SIDE DUAL SOT23-6
| Part Number | LTC1982ES6#TRM |
| Date Code | 2332 |
| Quantity Available | 27107 pcs |
| Manufacturer | Linear Technology/Analog Devices |
| Lead Time | Ship within 24 hours |
| QTY | 1000 |
| Datasheet | LTC1982.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | PHILIPPINES |
| Country of Diffusion | TAIWAN,CHINA |
| Lot Number | HG46770.61 |
| MSL | 1 |
| Base Product Number | LTC1982 |
| Packaging | Cut Tape (CT) |
| Driven Configuration | High-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 1.8 V ~ 5.5 V |
| Logic Voltage - VIL, VIH | 0.6V, 1.4V |
| Current - Peak Output (Source, Sink) | - |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6 |
The LTC1982 is low-power, self-contained N-channel MOSFET drivers. An internal voltage tripler allows gates to be driven without the use of any external components. Internal regulation circuitry allows quiescent current to drop to 10µA per driver (20µA for LTC1981) once the gates are charged.
Low quiescent current and low shutdown current (under 1µA) make these parts ideal for battery and other power constrained systems. The wide input voltage range accommodates a variety of battery/input configurations.
Gate drive is internally clamped to 7.5V providing protection to the external MOSFET gate. The MOSFETs can be driven in either high side or low side mode.
The LTC1981 single driver version also includes a gate drive ready pin and twice the drive current capacity of the dual driver LTC1982.
The LTC1982 is available in a 6-pin SOT-23.
