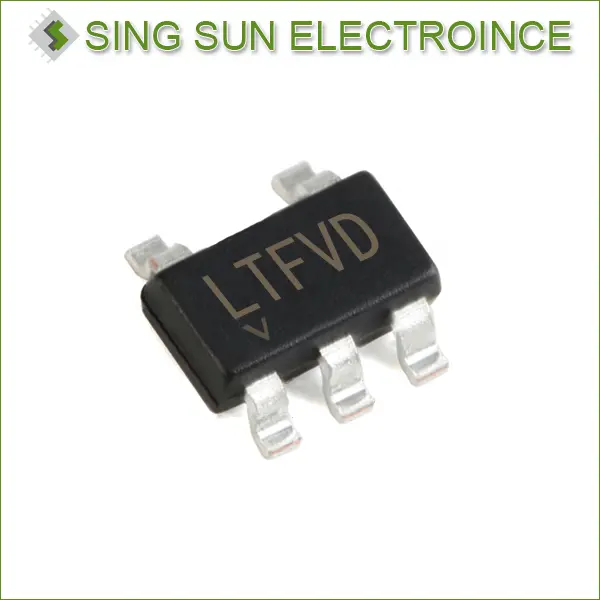

IC VREF SERIES 1.25V TSOT23-6
| Part Number | LT6654BHS6-1.25#TRMPBF |
| Date Code | 2043 |
| Quantity Available | 27301 pcs |
| Manufacturer | Linear Technology/Analog Devices |
| Lead Time | Ship within 24 hours |
| QTY | 500 |
| Datasheet | LT6654.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | TAIWAN |
| Country of Diffusion | IRELAND |
| Lot Number | WI64657.75 |
| MSL | 3 |
| Packaging | Tape & Reel (TR) |
| Base Product Number | LT6654 |
| Reference Type | Series |
| Output Type | Fixed |
| Voltage - Output (Min/Fixed) | 1.25V |
| Voltage - Output (Max) | - |
| Current - Output | 10mA |
| Tolerance | ±0.1% |
| Temperature Coefficient | 20ppm/°C |
| Noise - 0.1Hz to 10Hz | 0.8ppmp-p |
| Noise - 10Hz to 10kHz | 2ppmrms |
| Voltage - Input | 2.4 V ~ 36 V |
| Current - Supply | 600μA |
| Current - Cathode | - |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | TSOT-23-6 |
The LT6654BHS6-1.25#TRMPBF is a family of small precision voltage references that offers high accuracy, low noise, low drift, low dropout and low power. The LT6654 operates from voltages up to 36V and is fully specified from –55°C to 125°C. A buffered output ensures ±10mA of output drive with low output impedance and precise load regulation. These features, in combination, make the LT6654 ideal for portable equipment, industrial sensing and control, and automotive applications.
The LT6654 was designed with advanced manufacturing techniques and curvature compensation to provide 10ppm/°C temperature drift and 0.05% initial accuracy. Low thermal hysteresis ensures high accuracy and 1.6ppmP-P noise minimizes measurement uncertainty. Since the LT6654 can also sink current, it can operate as a low power negative voltage reference with the same precision as a positive reference.
The LT6654BHS6-1.25#TRMPBF references are offered in 6-lead SOT-23 package and an 8-lead LS8 package. The LS8 is a 5mm × 5mm surface mount hermetic package that provides outstanding stability.
