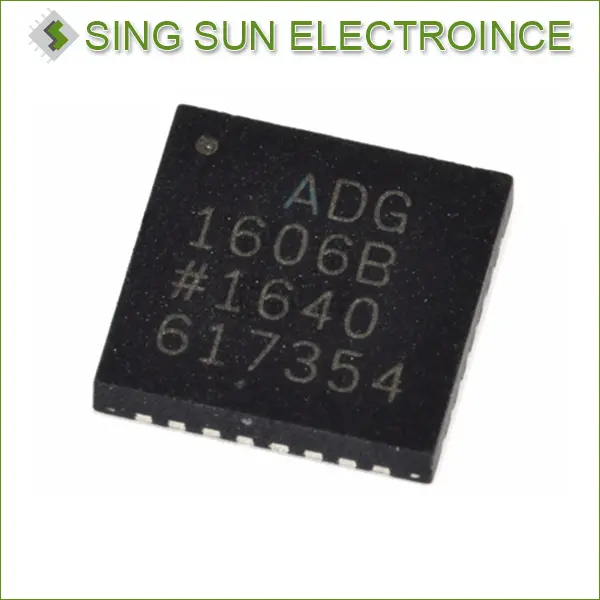

IC MULTIPLEXER 1X16 32LFCSP
| Part Number | ADG1606BCPZ-REEL7 |
| Date Code | 2109 |
| Quantity Available | 1500 pcs |
| Manufacturer | Analog Devices Inc. |
| Lead Time | Ship within 24 hours |
| QTY | 2000 |
| Datasheet | ADG1606.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | MALAYSIA |
| Country of Diffusion | IRELAND |
| Lot Number | QR66587.69 |
| MSL | 1 |
| Packaging | Tape & Reel (TR)/Cut Tape (CT)/Reel |
| Base Product Number | ADG1606 |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 16:01 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 5 Ohm |
| Channel-to-Channel Matching (ΔRon) | 200 mOhm |
| Voltage - Supply, Single (V+) | 3.3 V ~ 16 V |
| Voltage - Supply, Dual (V±) | ±3.3 V ~ 8 V |
| Switch Time (Ton, Toff) (Max) | 128ns, 109ns |
| -3db Bandwidth | 22MHz |
| Charge Injection | 33pC |
| Channel Capacitance (CS(off), CD(off)) | 18pF, 240pF |
| Current - Leakage (IS(off)) (Max) | 150pA |
| Crosstalk | -62dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Package / Case | 32-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 32-LFCSP-VQ (5x5) |
The ADG1606BCPZ-REEL7 is monolithic iCMOS® analog multiplexers comprising of 16 single channels and eight differential channels, respectively. The ADG1606BCPZ-REEL7 switches one of 16 inputs to a common output, as determined by the 4-bit binary address lines (A0, A1, A2, and A3). An EN input on both devices enables or disables the device. When disabled, all channels switch off. When enabled, each channel conducts equally well in both directions and has an input signal range that extends to the supplies.
The ultralow on resistance and on-resistance flatness of these switches make them ideal solutions for data acquisition and gain switching applications where low distortion is critical. iCMOS® construction ensures ultralow power dissipation, making the parts ideally suited for portable and battery-powered instruments.
