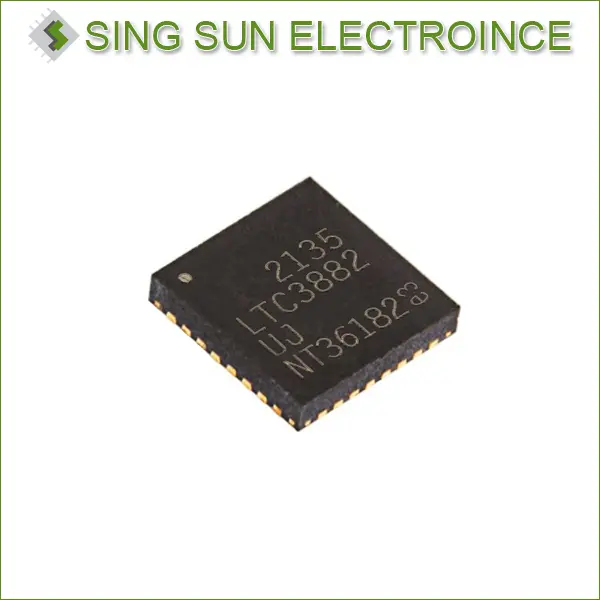

IC REG CTRLR BUCK PMBUS 40QFN
| Part Number | LTC3882EUJ#PBF |
| Date Code | 2013 |
| Quantity Available | 20796 pcs |
| Manufacturer | Linear Technology/Analog Devices |
| Lead Time | Ship within 24 hours |
| QTY | 2000 |
| Datasheet | LTC3882.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | PHILIPPINES |
| Country of Diffusion | USA |
| Lot Number | SZ98739.14 |
| MSL | 1 |
| Control Features | Enable, Phase Control |
| Base Product Number | LTC3882 |
| Packaging | Tube |
| Output Type | PWM Signal |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 2 |
| Output Phases | 2 |
| Voltage - Supply (Vcc/Vdd) | 3 V ~ 13.8 V |
| Frequency - Switching | 500kHz |
| Duty Cycle (Max) | 0.875 |
| Synchronous Rectifier | No |
| Clock Sync | Yes |
| Serial Interfaces | I2C, PMBus |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Package / Case | 40-WFQFN Exposed Pad |
| Supplier Device Package | 40-QFN (6x6) |
The LTC3882EUJ#PBF is a dual, PolyPhase DC/DC synchronous step-down switching regulator controller with PMBus compliant serial interface. It uses a constant frequency, leading-edge modulation, voltage mode architecture for excellent transient response and output regulation. Each PWM channel can produce output voltages from 0.5V to 5.25V using a wide range of 3.3V compatible power stages, including power blocks, DrMOS or discrete FET drivers. Up to four LTC3882s can operate in parallel for 2-, 3-, 4-, 6- or 8-phase operation.
LTC3882EUJ#PBF system configuration and monitoring is supported by the LTpowerPlay® software tool. The device’s serial interface can be used to read back input voltage, output voltage and current, temperature and fault status. A wide range of operating parameters can be set via the digital interface or stored in internal EEPROM for use at power up. Switching frequency and phase, output voltage and device address can also be programmed using external configuration resistors.
