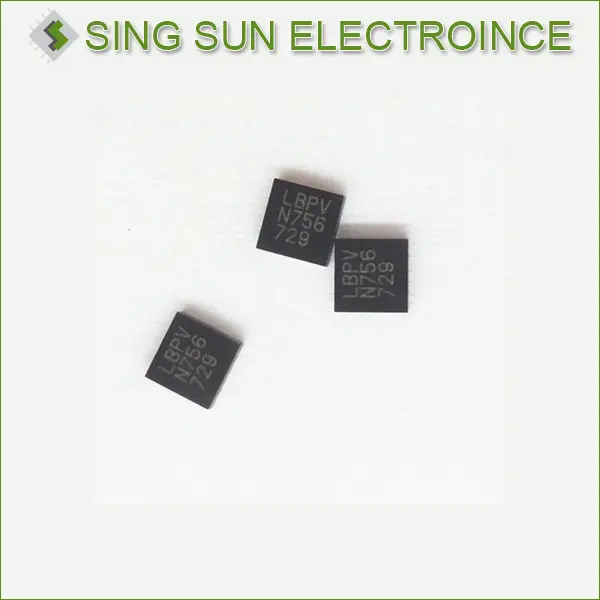

IC ADC 16BIT I2C 10-DFN
| Part Number | LTC2481IDD#TRPBF |
| Date Code | 2033 |
| Quantity Available | 10248 pcs |
| Manufacturer | Linear Technology/Analog Devices |
| Lead Time | Ship within 24 hours |
| QTY | 1000 |
| Datasheet | LTC2481.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | TAIWAN |
| Country of Diffusion | KOREA |
| Lot Number | OZ63987.13 |
| MSL | 3 |
| Packaging | Tape & Reel (TR) |
| Base Product Number | LTC2481 |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 7.5 |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | I2C |
| Configuration | MUX-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7 V ~ 5.5 V |
| Voltage - Supply, Digital | 2.7 V ~ 5.5 V |
| Features | PGA, Selectable Address, Temperature Sensor |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-DFN (3x3) |
The LTC2481IDD#TRPBF combines a 16-bit plus sign No Latency ΔΣ™ analog-to-digital converter with patented Easy Drive technology and I2C digital interface. The patented sampling scheme eliminates dynamic input current errors and the shortcomings of on-chip buffering through automatic cancellation of differential input current. This allows large external source impedances and input signals, with rail-torail input range to be directly digitized while maintaining exceptional DC accuracy.
The LTC2481IDD#TRPBF includes on-chip programmable gain and an oscillator. The LTC2481 can be configured through an I2C interface to provide a programmable gain from 1 to 256 in 8 steps, to digitize an external signal or internal temperature sensor, reject line frequencies (50Hz, 60Hz or simultaneous 50Hz/60Hz) as well as a 2x speed-up mode.
The LTC2481IDD#TRPBF allows a wide common mode input range (0V to VCC) independent of the reference voltage. The reference can be as low as 100mV or can be tied directly to VCC. The LTC2481 includes an on-chip trimmed oscillator eliminating the need for external crystals or oscillators. Absolute accuracy and low drift are automatically maintained through continuous, transparent, offset and full-scale calibration.
