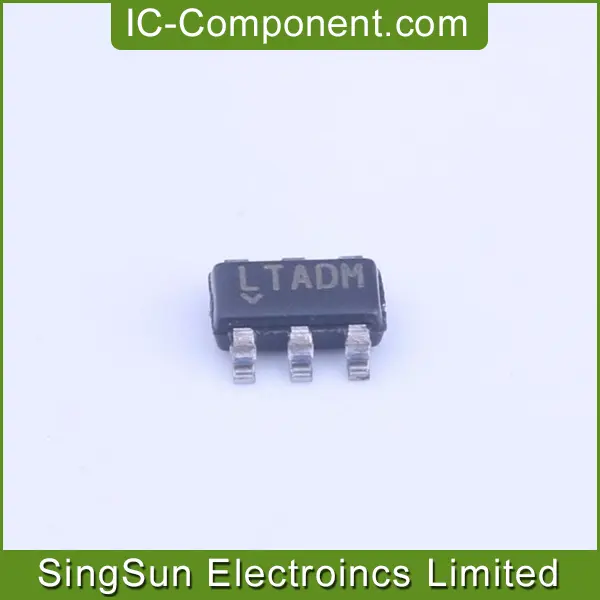

IC COMP DUAL 400MV REF TSOT23-6
| Part Number | LT6700HVHS6-3#TRPBF |
| Date Code | 2035 |
| Quantity Available | 23680 pcs |
| Manufacturer | Linear Technology/Analog Devices |
| Lead Time | Ship within 24 hours |
| QTY | 500 |
| Datasheet | LT6700HV.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | CHINA |
| Country of Diffusion | KOREA |
| Lot Number | IP51080.93 |
| MSL | 3 |
| Packaging | Tape & Reel (TR) |
| Base Product Number | LT6700HV |
| Series | Over-The-Top |
| Type | with Voltage Reference |
| Number of Elements | 2 |
| Output Type | Open Collector |
| Voltage - Supply, Single/Dual (±) | 1.4 V ~ 18 V |
| Voltage - Input Offset (Max) | - |
| Current - Input Bias (Max) | 0.01μA @ 18V |
| Current - Output (Typ) | - |
| Current - Quiescent (Max) | 19μA |
| CMRR, PSRR (Typ) | - |
| Propagation Delay (Max) | 29μs |
| Hysteresis | 13.5mV |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Mounting Type | Surface Mount |
| Supplier Device Package | TSOT-23-6 |
The LT6700HVHS6-3#TRPBF combine two micropower, low voltage comparators with a 400mV reference in a 6-lead SOT-23 or tiny DFN package. Operating with supplies from 1.4V up to 18V, these devices draw only 6.5μA, making them ideal for low voltage system monitoring. Hysteresis is included in the comparators, easing design requirements to insure stable output operation.
The comparators each have one input available externally; the other inputs are connected internally to the reference. The comparator outputs are open collector and the output load can be referred to any voltage up to 36V, independent of supply voltage. The output stage sinking capability is guaranteed to be greater than 5mA over temperature.
The three versions of this part differ by the polarity of the available comparator inputs. The LT6700HVHS6-3#TRPBF has two noninverting inputs. All versions are offered in commercial, industrial and automotive temperature ranges.
