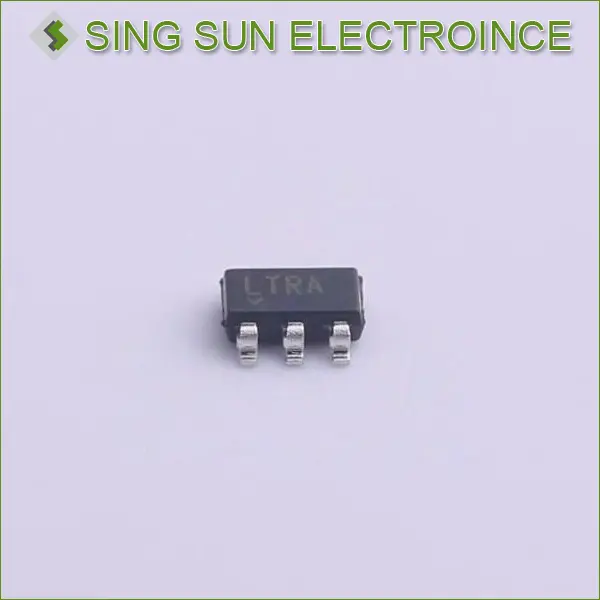

IC REG CUK INV ADJ 1A TSOT23-5
| Part Number | LT1931ES5#TRM |
| Date Code | 2104 |
| Quantity Available | 18532 pcs |
| Manufacturer | Linear Technology/Analog Devices |
| Lead Time | Ship within 24 hours |
| QTY | 3000 |
| Datasheet | LT1931.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | TAIWAN |
| Country of Diffusion | IRELAND |
| Lot Number | SC47547.76 |
| MSL | 1 |
| Packaging | Tape & Reel (TR) |
| Base Product Number | LT1931 |
| Function | Step-Up/Step-Down |
| Output Configuration | Negative |
| Topology | Cuk |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.45V |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | -1.255V |
| Voltage - Output (Max) | -34V |
| Current - Output | 1A |
| Frequency - Switching | 1.2MHz |
| Synchronous Rectifier | No |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
The LT1931ES5#TRM is the industry’s highest power inverting SOT-23 current mode DC/DC converters. Both parts include a 1A integrated switch allowing high current outputs to be generated in a small footprint. The LT1931 switches at 1.2MHz. These high speeds enable the use of tiny, low cost capacitors and inductors 2mm or less in height. The LT1931 is capable of generating –5V at 350mA or –12V at 150mA from a 5V supply. Both parts are easy pin-for-pin upgrades for higher power LT1611 applications.
The LT1931 operate in a dual inductor inverting topology that filters both the input side and output side current. Very low output voltage ripple approaching 1mVP-P can be achieved when ceramic output capacitors are used. Fixed frequency switching ensures a clean output free from low frequency noise typically present with charge pump solutions. The low impedance output remains within 1% of nominal during large load steps. The 36V switch allows VIN to VOUT differential of up to 34V.
The LT1931ES5#TRM is available in the 5-lead ThinSOT package.
