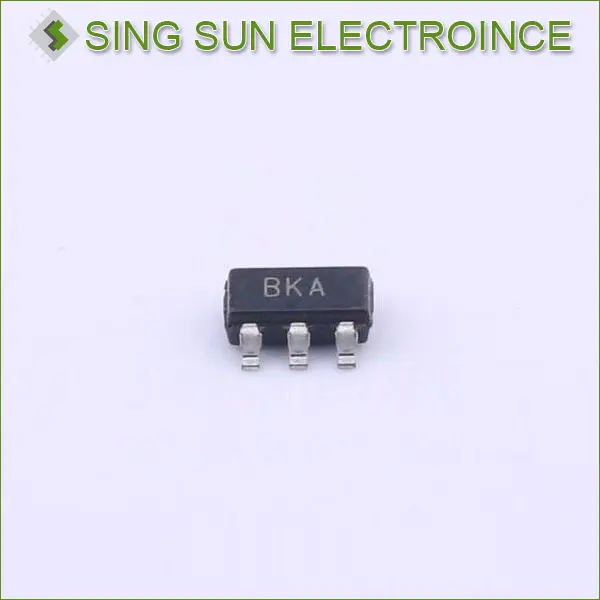

IC OPAMP GP 24MHZ RRO TSOT23-5
| Part Number | AD8615AUJZ-REEL7 |
| Date Code | 2117 |
| Quantity Available | 6000 pcs |
| Manufacturer | Analog Devices Inc. |
| Lead Time | Ship within 24 hours |
| QTY | 500 |
| Datasheet | AD8615.pdf |
| Minimum Quantity | More than 50pcs |
| Distributor | SingSun |
| RoHS Status | Lead free / RoHS Compliant |
| Ship From | Hong Kong |
| Shipment Way | EMS/SF/DHL/TNT/UPS/FedEx |
| Country of Assembly | KOREA |
| Country of Diffusion | UNITED STATES |
| Lot Number | VE44199.97 |
| MSL | 3 |
| Packaging | Tape & Reel (TR)/Cut Tape (CT)/Reel |
| Base Product Number | AD8615 |
| Series | Trim |
| Amplifier Type | General Purpose |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Slew Rate | 12 V/μs |
| Gain Bandwidth Product | 24MHz |
| -3db Bandwidth | - |
| Current - Input Bias | 0.2pA |
| Voltage - Input Offset | 23μV |
| Current - Supply | 1.7mA |
| Current - Output / Channel | 150mA |
| Voltage - Supply, Single/Dual (±) | 2.7 V ~ 5.5 V, ±1.35 V ~ 2.75 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | |
| Supplier Device Package | SOT-23-5 Thin, TSOT-23-5 |
The AD8615AUJZ-REEL7 are single, dual and quad rail-to-rail input and output single supply amplifiers featuring very low offset voltage, wide signal bandwidth, and low input voltage and current noise. These amplifiers use a patented trimming technique that achieves superior precision without laser trimming. All are fully specified to operate from +2.7 V to +5 V single supply.
The combination of low offsets, low noise, very low input bias currents, and high speed make these amplifiers useful in a wide variety of applications. Filters, integrators, photo-diode amplifiers and high impedance sensors all benefit from the combination of performance features. Audio and other AC applications benefit from the wide bandwidth and low distortion.
